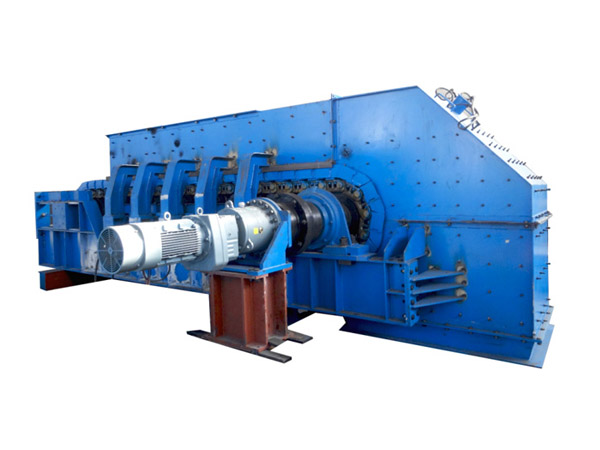

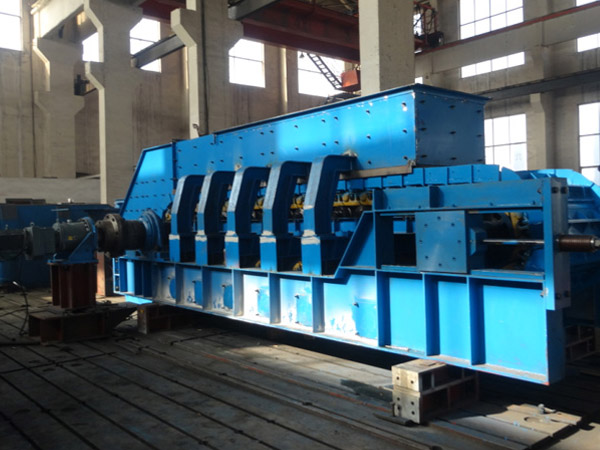

Plate Conveyor

Applied Materials

Coal, briquette, coking coal, briquette, etc. in the chemical industry

Product Advantages

The structure of the traditional external gear transmission is changed to adopt a double output shaft reducer structure, which effectively improves the accuracy of the roll, and the reducer gears are all hardened gears, which greatly improves the performance and life of the reducer.

Fully adopts high pressure ball The ball groove alignment structure of the machine is more convenient for installation, adjustment and maintenance.

Send E-mail Request Quote

Introduction of Plate Conveyor

Technical Parameter

The BG series of plate conveyor is the equipment that chain wheel drives scraping belt move to convey big block, cold, hot block materials. The equipment can bear heavy stock column pressure and impulse load with the feature of stable operation, even material-feeding and easy maintenance. It has been widely used in mine, metallurgy and ceramic industry. These series are newly developed and designed by our company which is based on the similar equipments from abroad company. We make many improvements on the new type equipment.

Order notes

The equipment is usually supplied as right installation. Please specify in the contract if left installation needed;

Length of Scraping belt can be adjusted according to the requirements of users. The specific length should be marked in the contract;

The equipment is usually supplied as conveying cold materials. Please specify in the contract if users are transporting hot materials.

Model	Width of Scraping Belt(mm)	Length of Scraping Belt(mm)	Speed of Scraping Belt(m/s)	Conveying Capacity(t/h)	Max. Material Size (mm)	Motor Power(kw)	Weight(t)
Model	Width of Scraping Belt(mm)	Length of Scraping Belt(mm)	Speed of Scraping Belt(m/s)	Conveying Capacity(t/h)	Max. Material Size (mm)	Motor Power(kw)	Weight(t)
BGQ0550	500	5000	0.1	16-36	≤160	5.5	3.49
BGQ0550		5000	0.16	25-57		7.5	3.49
BGQ0595		9500	0.16	60		7.5	5.2
BGQ05140		14000	0.16	60		11	7.32
BGQ0650	650	5000	0.1	21-42		5.5	3.54
BGQ0650		5000	0.16	33-68		7.5	3.54
BGQ06100		10000	0.1	21-42		5.5	5.48
BGQ06100		10000	0.16	33-68		7.5	5.48
BGQ0860	800	6000	0.1	25-68		5.5	4.27
BGQ0860		6000	0.16	42-109		7.5	4.27
BGQ08100		10000	0.1	25-58		5.5	5.7
BGQ08100		10000	0.16	42-109		7.5	5.7
BG0822	800	2200	0.025-0.15	31-210	≤300	5.5	3.73
BG0840		4000	0.025-0.15	31-210		7.5	4.9
BG08150		15000	0.0085-0.1693	85-120		11月15日	21.5
BG1038	1000	3800	0.025-0.15	22-130	≤350	7.5	10.5
BG10120	1000	12000	0.0085-0.1693	10-192	≤350	11月15日	19.4
BGZ1045	1000	4500	0.025-0.15	50-80	≤250	11	22.6
BG1240	1200	4000	0.025-0.15	35-217	≤450	7.5	12.6
BG1260	1200	6000	0.025-0.15	35-217	≤450	7.5/11	18.9
BGZ1250	1200	5000	0.05	100	≤500	15	33.5
BGZ12100		10000	0.05	100		22	47
BGZ12150		15000	0.05	100		30	62.2
BGZ1540	1500	4000	0.05	150	≤600	15	33.2
BGZ1580		8000	0.05	150		22	45.7
BGZ15120		12000	0.05	150		45	60
BGZ1660	1600	6000	0.089	350	≤750	30	43.9
BGZ1880	1800	8000	0.025	150-200	≤500	37	60.5
BGZ18120	1800	12000	0.05	240	≤800	45	85.6
BGZ2440	2400	4000	0.05	400	≤800	30	44.8
BGZ2480		8000	0.062-0.186	900-1800	≤1000	75/150	72.6
BGZ2480		8000	0.062-0.123	600-1200		45/110	72.6
BGZ24120		12000	0.044-0.015	74-218		37/55	114
