Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Ring Hammer Crusher
Applied Materials

Coal, briquette, coking coal, briquette, etc. in the chemical industry

Product Advantages

The structure of the traditional external gear transmission is changed to adopt a double output shaft reducer structure, which effectively improves the accuracy of the roll, and the reducer gears are all hardened gears, which greatly improves the performance and life of the reducer.

Fully adopts high pressure ball The ball groove alignment structure of the machine is more convenient for installation, adjustment and maintenance.

Introduction

Technical Parameters

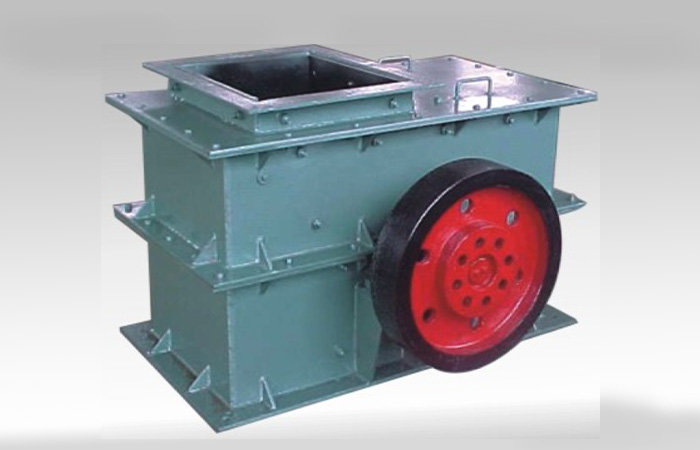

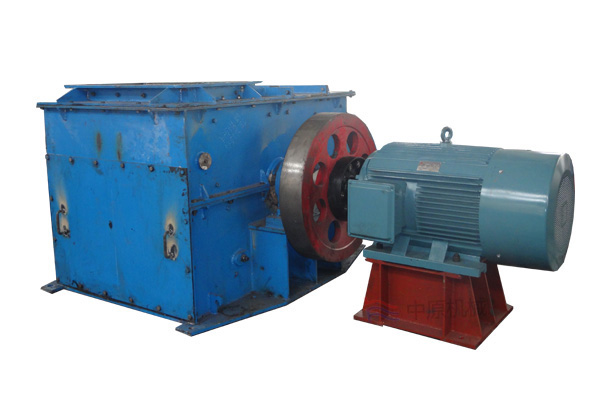

Ring hammer crusher introduction

The ring hammer crusher is an impact crusher with ring hammer. It is suitable for crushing all kinds of brittle materials with compressive strength not exceeding 100Mpa and water not exceeding 8%, such as coal, coal gangue, coke, slag, shale, loose limestone, etc. . Widely used in mining, electric power, metallurgy, aluminum carbon, cement, building materials, chemical and other industries.

Ring hammer crusher advantages

1. The ring hammer crusher has the unique advantages of energy saving, low noise and less dust.

2. The particle size of the machine is adjusted by the high-speed rotation of the spindle and the quick-change sieve plate, which can strictly guarantee the discharge granularity.

3. The hammer head is made of special materials after casting, which is 2-5 times higher than the service life of ordinary manganese steel.

4. The sieve plate is a quick change structure, which is easy to adjust and convenient to maintain.

Order notes

1. Material characteristics, feeding size and discharging size should be presented in the contract.

2. The equipment is supplied as right-installed generally. Please specify in the contract if it needs to be installed at left.

3. Lubrication system is usually supplied with nipples mode. Please specify in the contract if centralized lubrication and electrical lubrication are required.

4. Standard configuration does not contain the electrical control. If needed, please specify in the contract.
