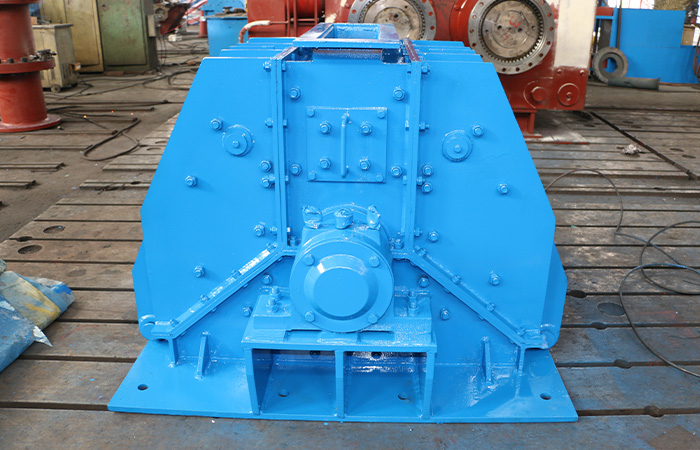

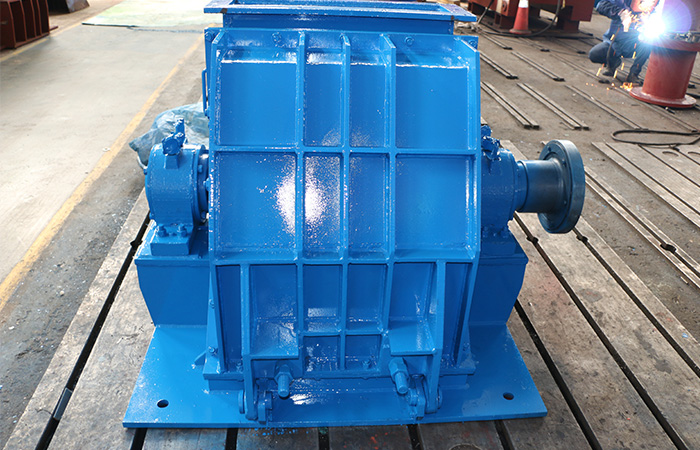

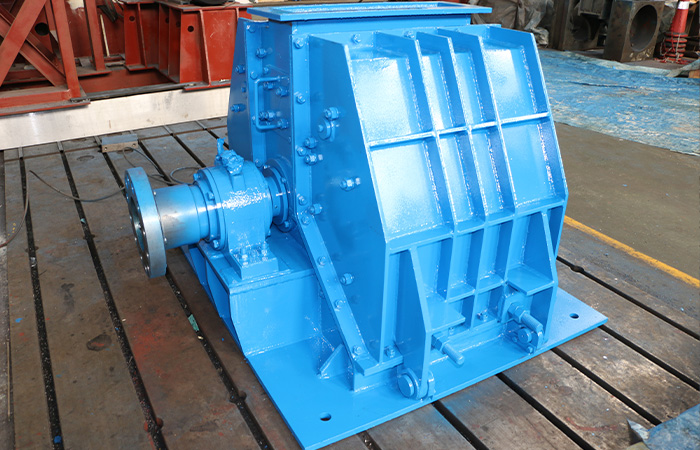

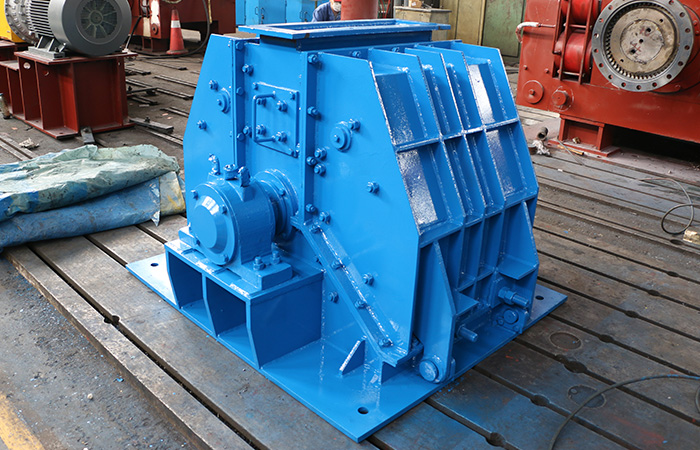

Reversible Impact Hammer Crusher

Applied Materials

Coal, briquette, coking coal, briquette, etc. in the chemical industry

Product Advantages

The structure of the traditional external gear transmission is changed to adopt a double output shaft reducer structure, which effectively improves the accuracy of the roll, and the reducer gears are all hardened gears, which greatly improves the performance and life of the reducer.

Fully adopts high pressure ball The ball groove alignment structure of the machine is more convenient for installation, adjustment and maintenance.

Send E-mail Request Quote

Introduction

Technical Parameters

Working Principle

The reversible impact hammer crusher is a crusher that can be positively and reversely developed on the basis of advanced foreign equipment. Applicable to cement, electric power, metallurgy, mining and other industries, such as: limestone, vermiculite, slag, raw coal and anthracite, medium and fine crushing and fine crushing operations.

The compressive strength of the material is ideal below 300MPa, and it is equipped with hydraulic and mechanical adjustment clearance system to ensure the high degree of automation and safe operation of the reversible impact hammer crusher.

Reversible impact hammer crusher advantages

1. The fineness of the discharge granularity is high, and the proportion of the discharge granularity of ≤3mm accounts for 90%–92%;

2. The advantages of counterattack, hammer and ring hammer crushers are reflected;

3. Hydraulic two-way opening side frame for easy maintenance and maintenance;

4. The crushing ratio is large, the wearing parts have a long service life (6-8 months), high efficiency, energy saving, and the use cost is greatly reduced.

Order notes

1. Material characteristics, feeding size and discharging size should be presented in the contract.

2. The equipment is supplied as right-installed generally. Please specify in the contract if it needs to be installed at left.

3. Lubrication system is usually supplied with nipples mode. Please specify in the contract if centralized lubrication and electrical lubrication are required.

4. Standard configuration does not contain the electrical control. If needed, please specify in the contract.

Model	Roller Dia.	Roller Length	Feeding Size	Discharging Size	Capacity	Motor Power	Weight	Outline Size (mm)
Model	(mm)	(mm)	(mm)	(mm)	(t/h)	(kw)	(t)	Length	Width	Height
PFCK-0606	600	600	≤60	≤6	20	55	3.2	2321	1640	1150
PFCK-0808	800	800	≤80	≤10	45	90	6.1	2669	1840	1446
PFCK-1010	1000	1000	≤80	≤10	80	132	10.8	3165	2311	1810
PFCK-1016	1000	1600	≤80	≤10	120	220	14.6	4999	2253	1710
PFCK-1212	1200	1200	≤80	≤10	150	280	17.5	4799	2660	2140
PFCK-1216	1200	1600	≤80	≤10	200	355	23.4	5039	2660	2140
PFCK-1413	1400	1300	≤80	≤10	250	400	24.7	5284	2975	2580
PFCK-1616	1600	1600	≤80	≤10	300	450	35.2	5720	4811	2954
PFCK-1618	1600	1800	≤80	≤10	350-400	630	39.8	6406	3586	3016
PFCK-2022	2000	2200	120	≤10	450-550	630-800	49.6	8985	4270	4063

Equipment working principle

reversible impact hammer crusher

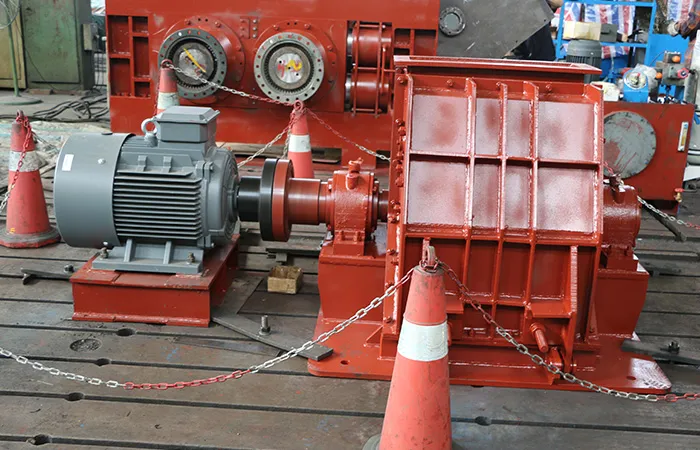

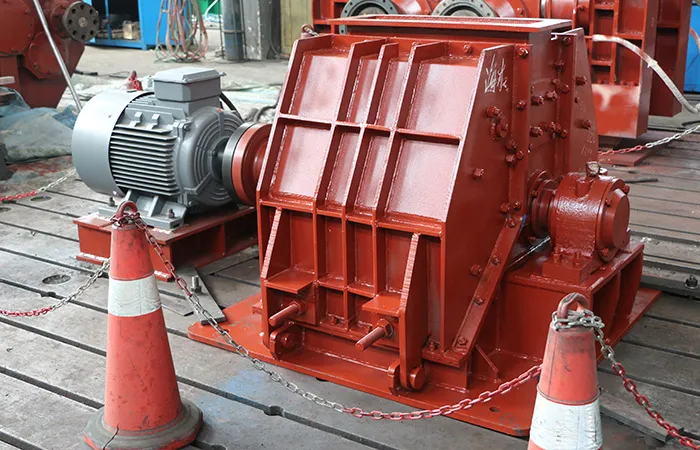

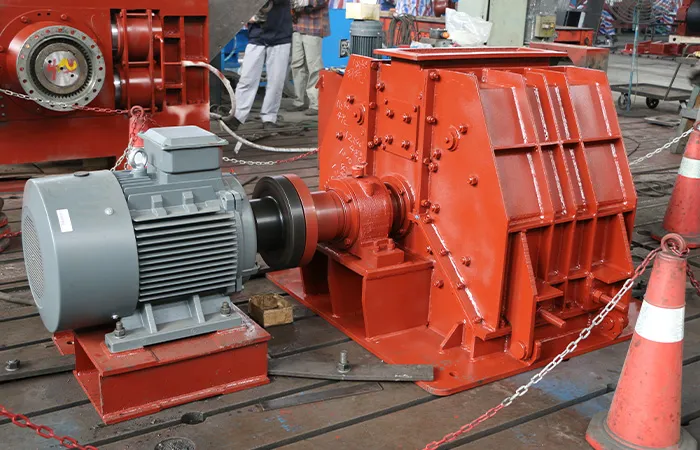

The motor + fluid coupling (or driven by the pulley or driven by the reducer) drives the rotor rotating at high speed, and the high-speed hammer is arranged by the spiral suspension on the rotor, and the high-speed impact is fed from the upper part of the crusher. The material is directly cut into the joint between the hammer head and the wavy lining, and then hammered, sheared, squeezed, ground and pulverized between materials.

The broken qualified material is discharged from the bottom, and the rotor can be positive and negative. Rotating in one direction, it takes one month to change the direction of rotation to ensure the symmetrical wear of the hammer head, which reduces the labor intensity of the workers and helps to improve the service life of the hammer head. It does not need to manually clean the cavity.
