What is the structure of HPGR?

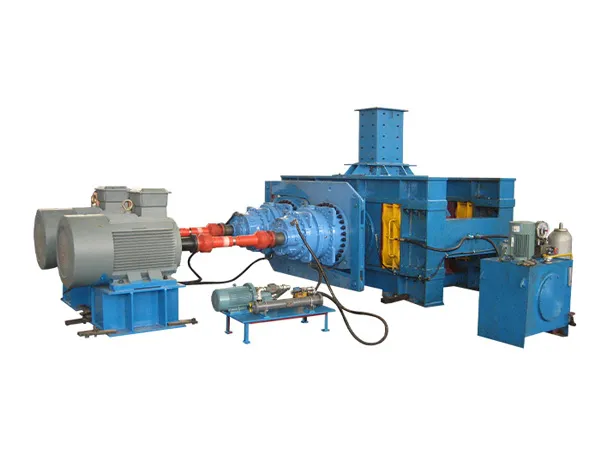

HPGR stands for high-pressure grinding rolls, which are a type of grinding equipment used in the mining and minerals processing industry. The structure of an HPGR typically consists of the following components:

Rolls: The HPGR consists of two counter-rotating rolls, often made of hard materials such as steel or tungsten carbide studs. These rolls exert high pressure on the feed material, crushing and grinding it against the fixed or floating roll.

Frame: The rolls are mounted within a sturdy frame, which provides support and stability to the entire HPGR unit.

Drive System: HPGRs are powered by a drive system, usually comprising motors, gearboxes, and other mechanical components, which rotate the rolls at the desired speed and torque.

Feed Hopper: The feed material is introduced into the HPGR through a feed hopper, where it is evenly distributed onto the rolls for grinding.

Adjustment Mechanism: HPGRs often include mechanisms for adjusting the gap between the rolls, allowing for control over the size of the crushed and ground material.

Hydraulic System: Many HPGRs utilize hydraulic systems to apply and control the high pressure exerted by the rolls onto the feed material.

Bearings and Seals: Bearings are used to support the rolls and facilitate their rotation, while seals are employed to prevent leakage of hydraulic fluid and maintain the integrity of the HPGR's operation.

Control System: HPGRs may incorporate advanced control systems to monitor and regulate various parameters such as roll speed, pressure, and feed rate, optimizing the grinding process for efficiency and product quality.

Overall, the structure of an HPGR is designed to withstand the high pressures and forces involved in the grinding process while providing efficient and reliable operation for mineral processing applications.
