What are the common faults and solutions of impact crushers?

Impact crusher is a crushing machine that uses impact energy to crush materials. It can handle materials with a side length of 100-500 mm or less, with a compressive strength of up to 350 MPa, with a large crushing ratio, and the crushed materials are cubic particles. Widely used in building materials, ore crushing, railways, highways, energy, transportation, energy, cement, mining, chemical and other industries for medium and fine crushing materials, the size of the discharge can be adjusted, and the crushing specifications are diversified.

When any machine is used for a long time or is used improperly, it will cause the situation that it cannot be used normally. So what are the common faults and solutions when using the impact crusher? Crusher manufacturers take you to share their common faults and solutions in detail:

1. The counterattack starter does not turn

Check whether the material in front of the feeder falls into the crushing cavity due to the vibration of the shutdown, causing the material to stick to the rotor. It is necessary to clean up the materials in the crushing chamber and start the machine again to solve the problem.

2. The counterattack breaks the bearing and generates heat

It should be checked whether the lubrication of the bearing is good. Under normal circumstances, the lubricating oil should be filled with 50% of the volume of the bearing seat; in another case, the lubricating oil is deteriorated and viscous, and the bearing needs to be cleaned and replaced with new lubricating oil. Too much or too little oil in the bearing will cause the bearing to heat up. When refueling, check the oil level. If the bearing is damaged, replace the bearing in time. If the upper cover is too tight, it is advisable to adjust the bolt tightness.

3. Abnormal vibration of equipment

If there is abnormal vibration, the operator should stop immediately, we need to check the following conditions.

(1) Check whether there are metal impurities or broken parts inside, and clean the crusher cavity;

(2) Check the fastening of the inner lining plate and the gap between the blow bar and the lining plate. If the gap is too small, abnormal noise will be caused;

(3) It may be that the feed size is too large;

(4) The wear parts are unevenly worn, and the impact hammer needs to be replaced;

(5) The rotor is unbalanced and needs to be adjusted and checked for balance;

(6) Check whether the anchor bolts of the equipment are tightened and properly reinforced.

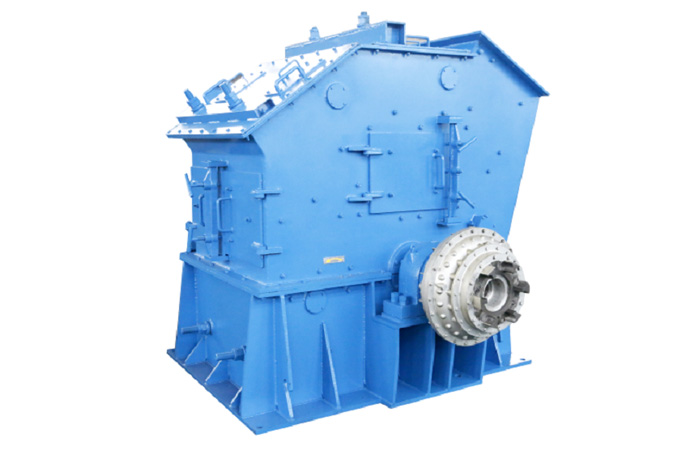

impact crusher

4. Counterattack to break the belt and turn over

Mainly because the belt is damaged, the V-belt needs to be replaced, and attention should be paid to ensure the quality of the belt; or because of the inappropriate assembly of the pulley, the active and driven pulleys need to be adjusted on the same plane.

5. The machine bearing is bent or broken

The main reasons are the long-term overload operation of the main engine, improper heat treatment of the bearing, and excessive hardness of the broken objects. When handling, it is necessary to replace the new bearing, and pay attention to timely maintenance and repair in the future operation process.

6. The discharge particle size is too large

It means that the blower or impact liner of the impact crusher is seriously worn, causing the gap between the blower and the impact plate to be too large. Adjust the gap between the front and rear impact racks, or replace the liner and plate hammer; adjust the position of the impact rack so that the two sides are close to the machine The gap between the frame linings is uniform; if the linings on the frame are seriously worn, they should be replaced in time.

impact crusher

7. The impact crusher is stuffy

The impact crusher suddenly stops during operation, and there are many reasons for this failure, such as blockage of the discharge port, slippage of the belt, low voltage, bearing damage, etc. These problems should be eliminated, such as clearing the blockage of the discharge port, tightening the belt, increasing the voltage and ensuring the stability of the voltage, replacing the bearing, etc.

8. The spring parts of the equipment are broken

The main reason for this failure is that the spring is not loosened when the discharge port is reduced. Therefore, the broken spring must be replaced during disposal.

9. Abnormal noise inside the crushing chamber

Stop the machine immediately, check whether there are metal impurities or broken parts inside the crushing cavity, and clean the crusher cavity; check the fastening of the inner lining plate and the gap between the blow bar and the lining plate, if the gap is too small, it will also cause abnormal noise .

10. There is a glue smell in the operation of the equipment

The main cause of this problem is the slippage of the belt, the friction with the pulley and the pungent rubber smell, or the rotor is stuck. It is necessary to check the rotor in the machine cavity and solve it in time.

The above are the faults and solutions that are prone to occur in the use of the impact crusher. If this happens in the later use, you can refer to the simple inspection. When we choose the impact crusher, we must choose the quality pass, the regular manufacturer. Avoid frequent problems later, or situations where there is no quality assurance.
